Road Blocker Model FG-APT-Titan

This post is also available in: Thai

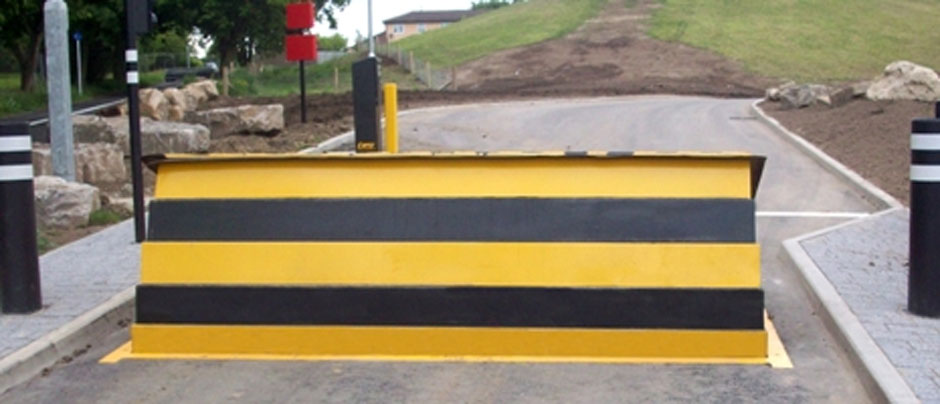

FG-Titan-surface-mount-road-blocker



Technical specifications of Automatic road blocker

Road blocker material 6mm. mild steel sheet finished with polyester powder paint 75 microns
Road blocker dimensions Length across roadway 2000 / 3000 mm.(L)* Width 2580 mm.(W)* 260 mm.(D), Raised height 950mm(H)
Design standard BSI PAS68 stopping a net weight 7,500kg vehicle travelling both 80kph and 64kph
Bollard moving speed

4 seconds at 3m. length.

Hydraulic pump and system controller Hydraulic pump with PLC controller
Power supply AC380-415V ±10%, 50Hz
Work environment Indoor temperature:-40°C+50°C, Relative humidity:≤90%, non-condensing



Applications
