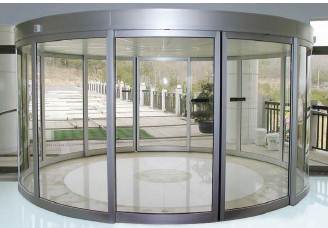

Technical specifications of Automatic Curved Sliding / Revolving Door model FG-KC1000
- Material
- Aluminum alloy frame, Curved laminated glass
- Dimension
- 2400-3600mm.( ø)*2500mm.(H)
- Passing control
- Automatic operation, access control system using proximity card or finger scan, barcode and various smart card.
- Additional interface
- A fire alarm interface
- Power supply
- AC220V±10%, 50Hz
| Model | Diameter (mm) | Outer Diameter (mm) | Total Height (mm) | Inner Height (mm) | Canopy Height (mm) |
|---|---|---|---|---|---|
| #1 | 2400 | 2488 | 2500 | 2200 | 300 |
| #2 | 2700 | 2788 | 2500 | 2200 | 300 |
| #3 | 3000 | 3088 | 2500 | 2200 | 300 |
| #4 | 3200 | 3288 | 2500 | 2200 | 300 |
| #5 | 3600 | 3688 | 2500 | 2200 | 300 |
